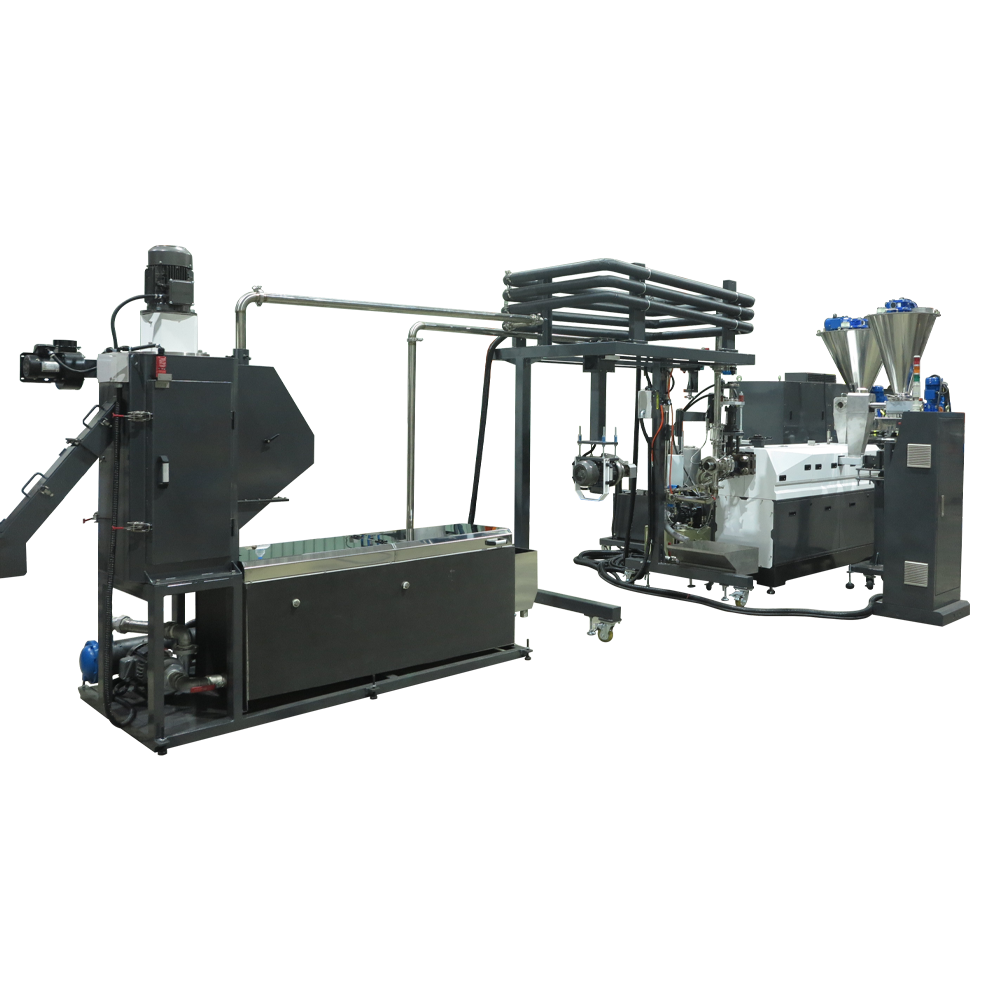

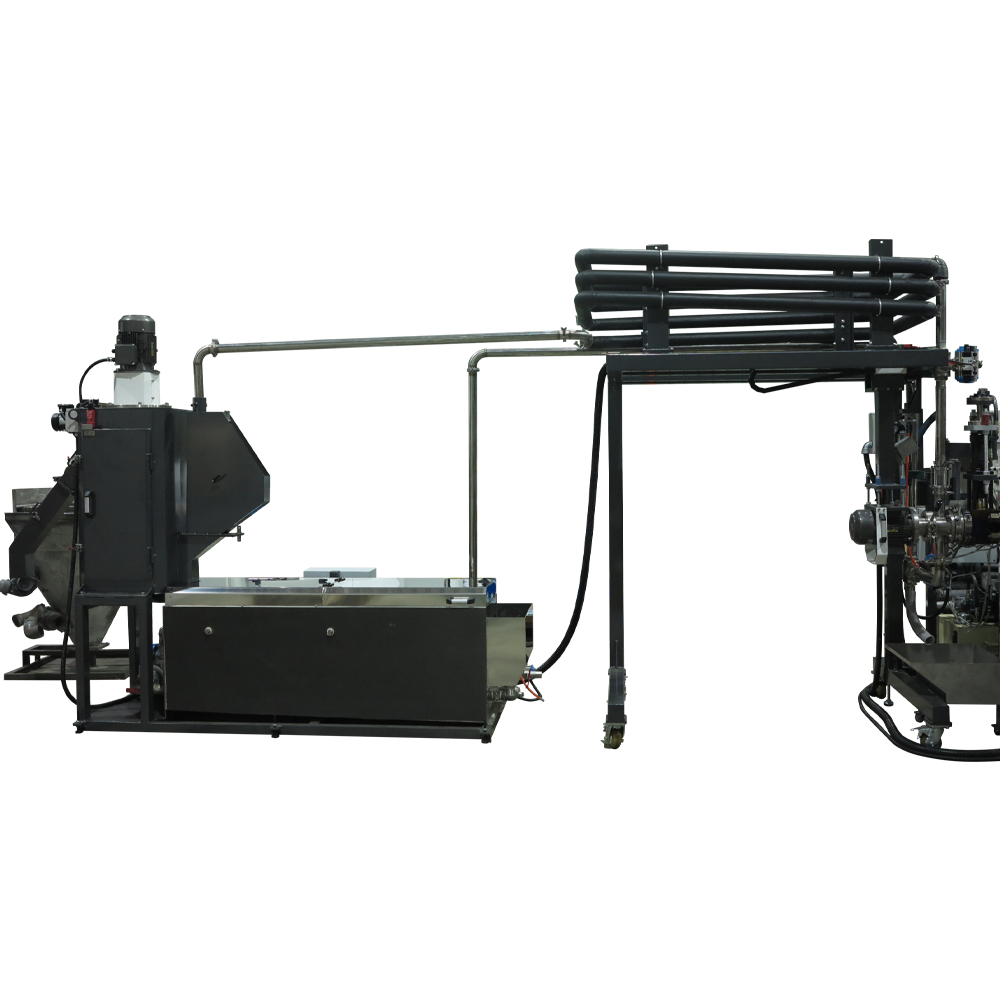

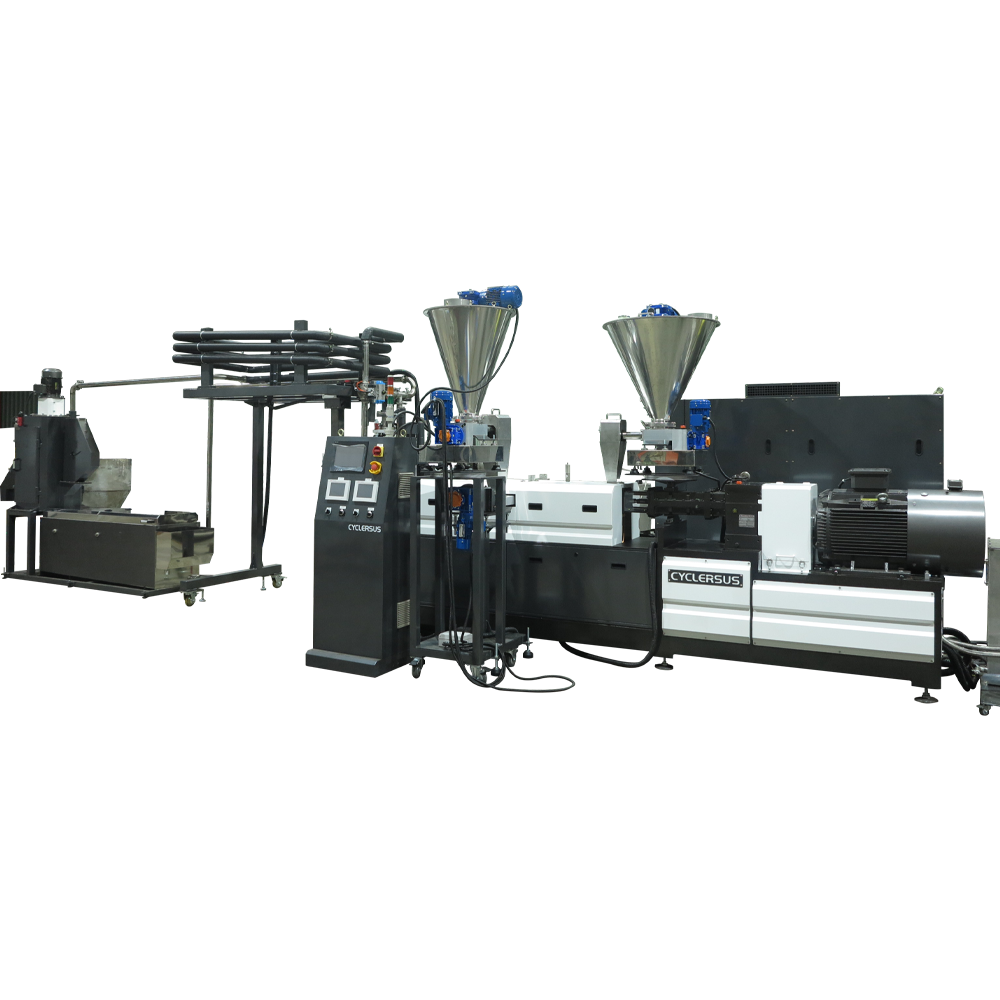

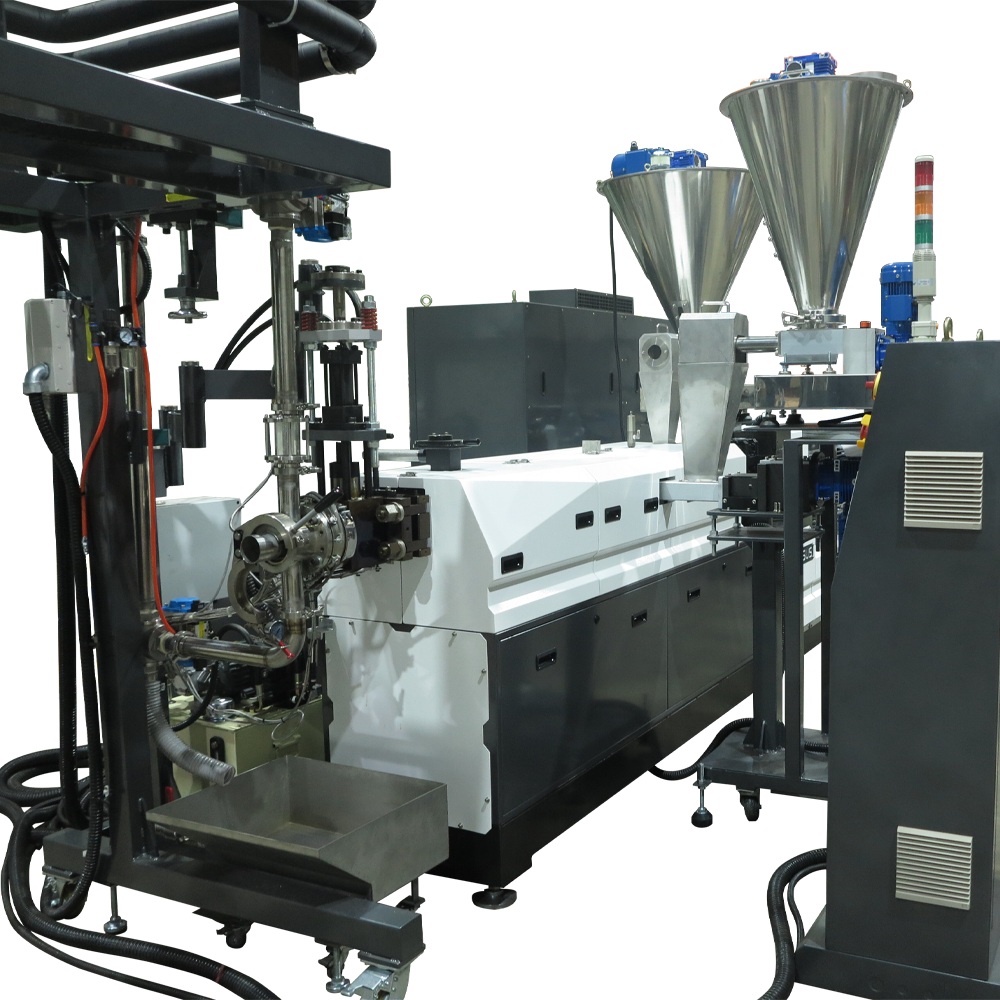

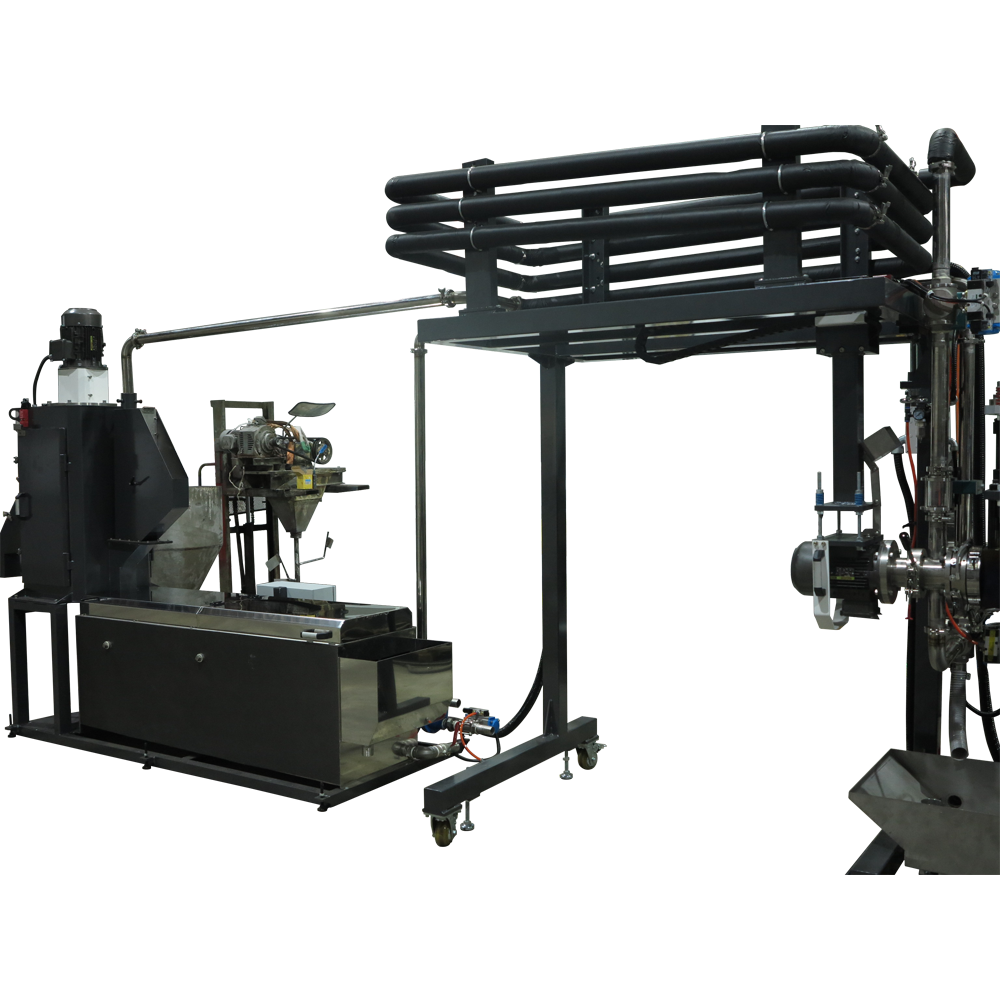

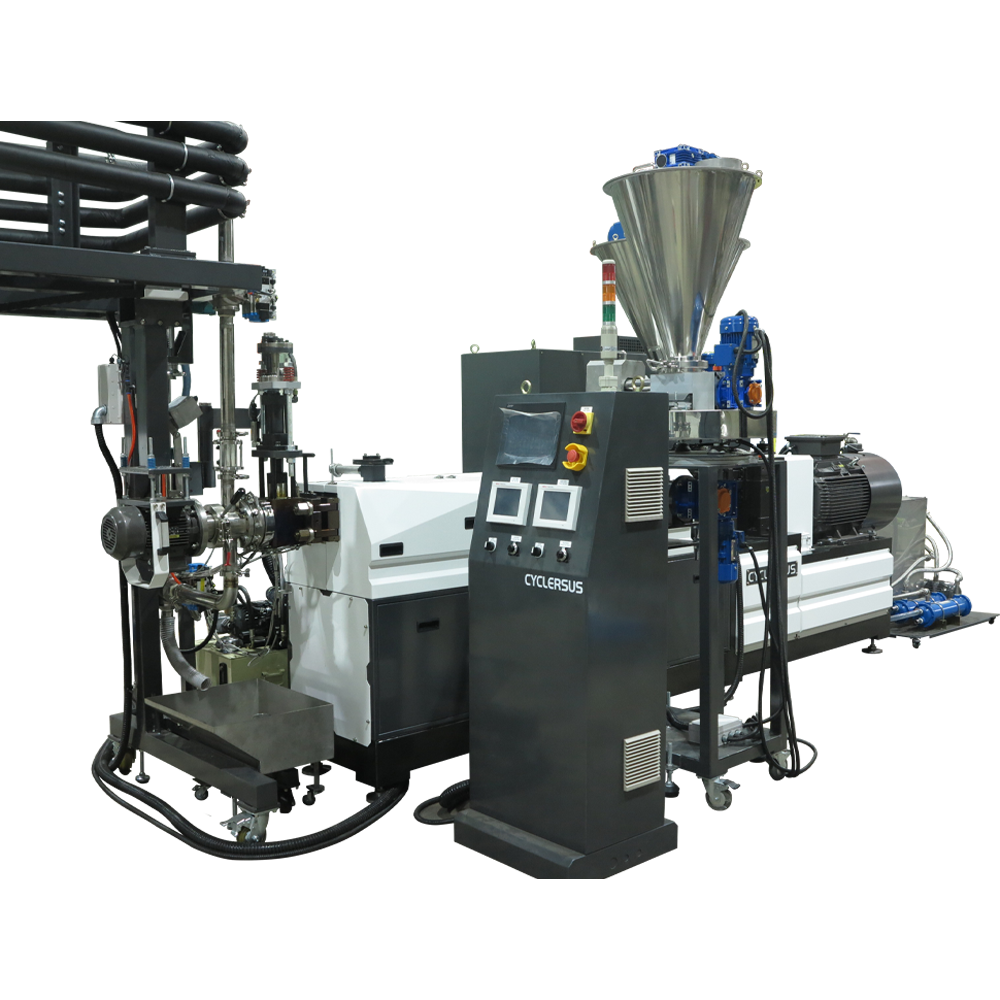

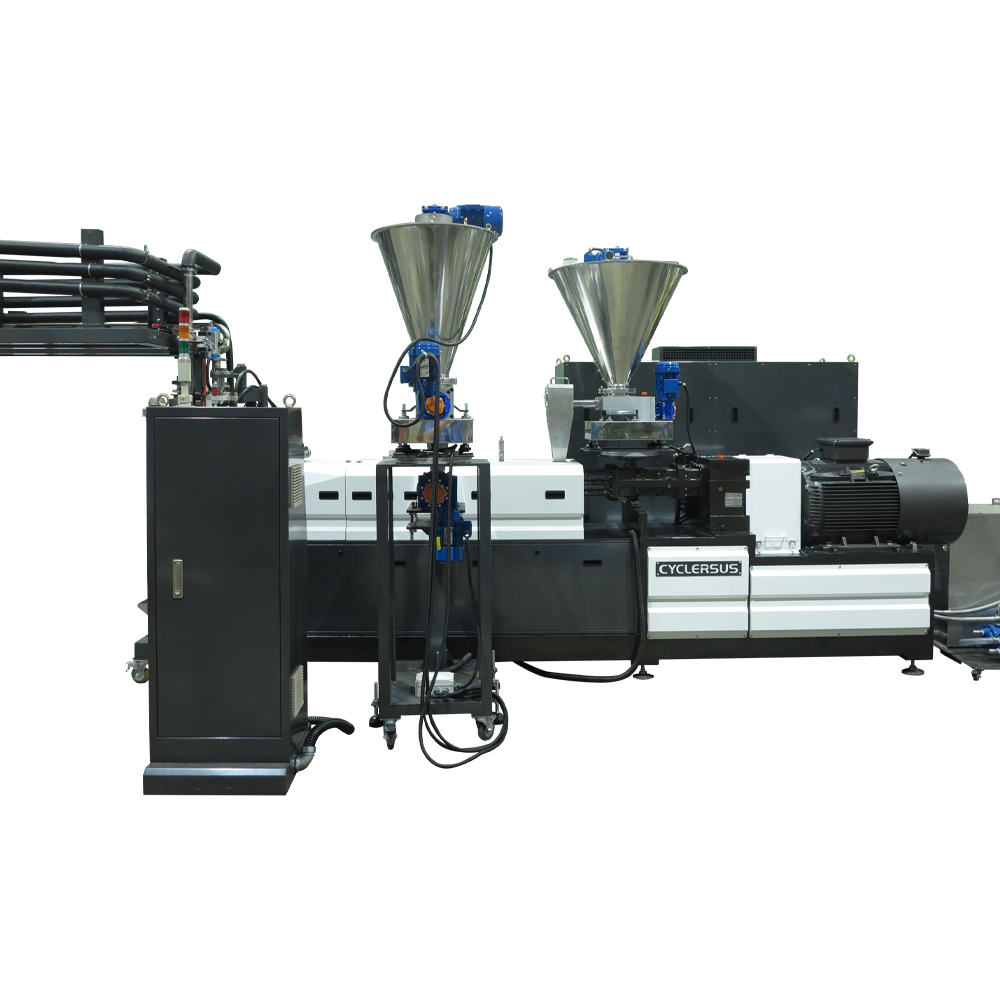

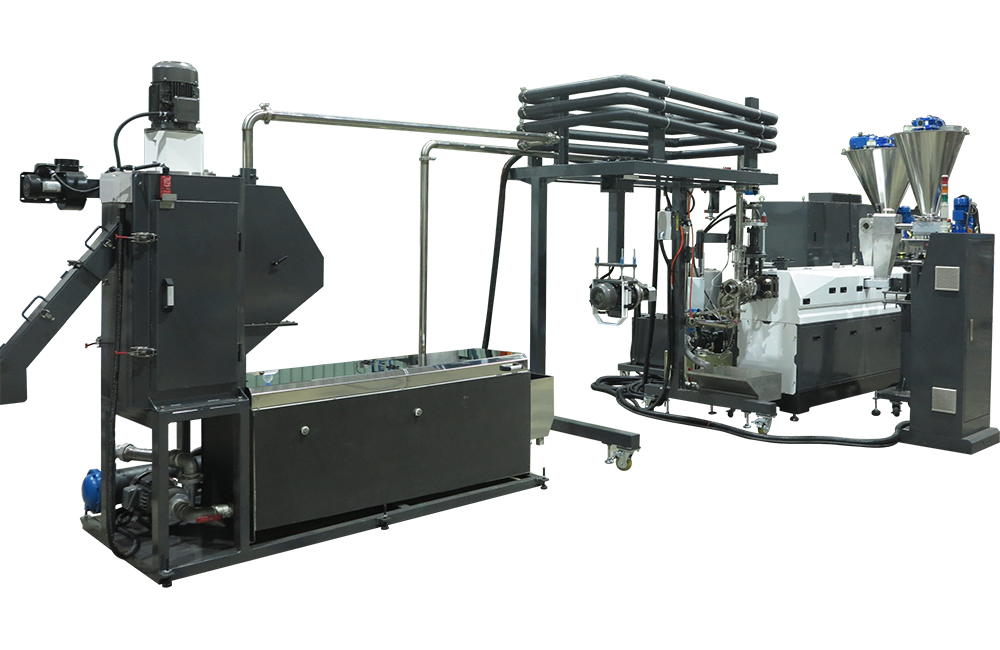

CCS2042-UWC

OUR SERVICES & PRODUCTS

Applicable Material

Pre-processed crushed plastic flakes

Features

This model is specifically designed for recycling hard plastic materials and crushed flakes. It is capable of processing contaminated materials. Equipped with a dual-filtration system, the machine filters materials through a primary screen, followed by vacuum degassing, and then passes through a secondary filter before pelletizing via die-face cutting.

• Designed for recycling hard plastics and crushed flakes.
• Equipped with dual-column hydraulic screen changers.
• Reduces the frequency of screen changes and allows non-stop screen replacement.

Model	CCS2032	CCS2042	CCS2058	CCS2077	CCS2092
Material	ABS / BOPP / EVA/ HDPE / LDPE / LLDPE / PE / PP / PS
Capacity (KG per hour)	30-50 KG/HR	120-150 KG/HR	200-500 KG/HR	300-500 KG/HR	800-1000 KG/HR
Pelletizing System	Strand-Type Cutting/Water Ring Cutting/Under Water Cutting/ Water Pad Pelletizer
Noted	Due to continous research and development, speciffications shown on quotations sheet may be different on this calalog the Capacity depends on the materials (Clean or Dirty). Correct specification and capacity are based on the quotation sheet.

CCS2042-UWC

CCS2042-UWC

OUR SERVICES & PRODUCTS

CCS2042-UWC

This model is specifically designed for recycling hard plastic materials and crushed flakes.

Applicable Material

Features
